Description

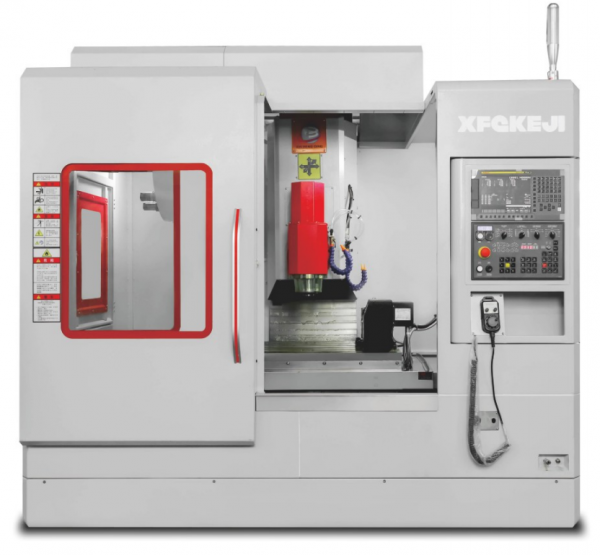

Optional configurations of swing head vertical compound machining center series:
■Control system: Mitsubishi, Fanuc, Siemens, Shindai
■Spindle center water outlet, spindle ring water outlet, high-pressure
backwash chip cleaning device (optional)
■Twin screw chip conveyor
■Fourth axis (fifth axis) (optional)
■Oil mist collector (optional)
Standard configuration:
■Mitsubishi M80 control system/oi-mf plus
■Full-cover rice gold
■Cutting fluid system
■Power box heat exchanger
■Automatic power-off automatic lubrication system
■Spindle air blowing
■Steel tapping
■Working light
■Three-color warning light
■Transformer
■Foundation screws and pads
■Tool magazine 24T
■Spindle cooler
■Twin screw back chip removal
■Water and air gun devic
|
Machine Specifications |
unit |
XFQ-960 |
XFQ-1160 |
||
|
Processing range |
Worktable travel (X) |
Millimeters |
900 |
1100 |
|
|
Saddle travel (Y) |
Millimeters |
600 |
600 |
||
|
Head travel (Z) |
Millimeters |
600 |
600 |
||
|
Distance from spindle end to table |
Millimeters |
100-700 |
100-700 |
||
|
Workbench |
Workbench size |
Millimeters |
1000*620 |
1200*620 |
|
|
Workbench load-bearing |
Kilogram |
600 |
800 |
||
|
T-slot (number*width*pitch) |
Millimeters |
18*6*100 |
18*5*112 |
||
|
Spindle |
Motor power |
kilowatt |
15 |
15 |
|
|
Speed ​​range |
Speed |
12000 |
12000 |
||
|
Spindle specifications |
HSKA63 electric spindle |
HSKA63 electric spindle |
|||
|
B-axis tilt angle |
+110°—110° |
+110°—110° |
|||
|
A-axis |
Fourth axis (255 specifications) |
0–360° |
0–360° |
||
|
Tool magazine specifications |
Number of standard tool magazines |
24 |
24 |
||
|
Tool full diameter/length |
Millimeters |
80/300 |
80/300 |
||
|
Tool open diameter/length |
Millimeters |
150/300 |
150/300 |
||
|
Maximum tool weight |
Kilogram |
8 |
8 |
||
|
Tool change time |
Era |
4 seconds |
4 seconds |
||
|
Guide |
X axis*number of sliders |
Millimeters |
35*6 |
45*6 |
|
|
Y axis*number of sliders |
Millimete Related products | ||||
