Why Fire Safety in Utility-Scale BESS Enclosures Starts With Insulation
Utility-scale battery energy storage cabinets and lithium containers increasingly operate at 1,500V DC, where stored energy is high and the tolerance for insulation failure is narrow. Inside these enclosures, busbar insulators are the components that hold current-carrying copper and aluminum conductors at a fixed distance from grounded chassis backplates. When that separation is lost — through tracking, thermal degradation, or mechanical movement — the outcome is an internal arc fault inside a closed metal enclosure, precisely the condition that NFPA 855 BESS fire safety requirements are written to prevent.
Yueqing City Duwai Electric Co., Ltd., operating under the brand DOWE Electric (also referenced as DUWAI / DOWE), is a specialized research, development, and high-precision manufacturing enterprise dedicated to electrical insulation systems and busbar supports for global power distribution infrastructure. Its engineering focus sits directly on the fire-safety chain inside BESS enclosures.
The DC Arcing Problem: Why Ordinary Insulation Is Not Enough
Four physical conditions define the risk profile of a high-voltage DC battery enclosure:
- DC arcing in high-voltage DC solar and battery systems lacks a natural zero-crossing point, creating continuous surface tracking risks that AC insulation design never has to solve.
- Short-circuit electrodynamic forces place mechanical stress on busbar supports during fault conditions.
- Thermal cycling causes differential expansion between copper/aluminum busbars and composite supports.
- Non-compliant plastics can ignite during internal arc faults in enclosed switchgear.
Fire safety in a BESS container is therefore not only a suppression question. It is a materials and geometry question that begins at the insulator.
Decoding UL 94-V0 and the Measurements Behind It
UL 94-V0 — Self-extinguishing flame retardancy with afterflame time t1 + t2 no greater than 8 seconds and zero flaming drips. This is the material-level behavior that limits flame spread once an arc fault has occurred.
Comparative Tracking Index (CTI) — 600V or higher, placing the material in Material Group I for resistance to conductive carbon tracking in humid or dusty solar and BESS installations.
Relative Thermal Index (RTI) — 130°C for electrical and mechanical properties per UL 746B, giving specifiers a defined thermal limit rather than an assumed one.
Heat Deflection Temperature (HDT) — maintains structural rigidity under 1.8 MPa flexural load up to +180°C.
Coefficient of Thermal Expansion (CTE) — 15–22 × 10^-6 /K, aligned with copper (16.5 × 10^-6 /K) and aluminum (23.1 × 10^-6 /K), which reduces differential expansion stress across repeated thermal cycling.
Inside the DOWE Insulation System for Solar and Battery DC Circuits

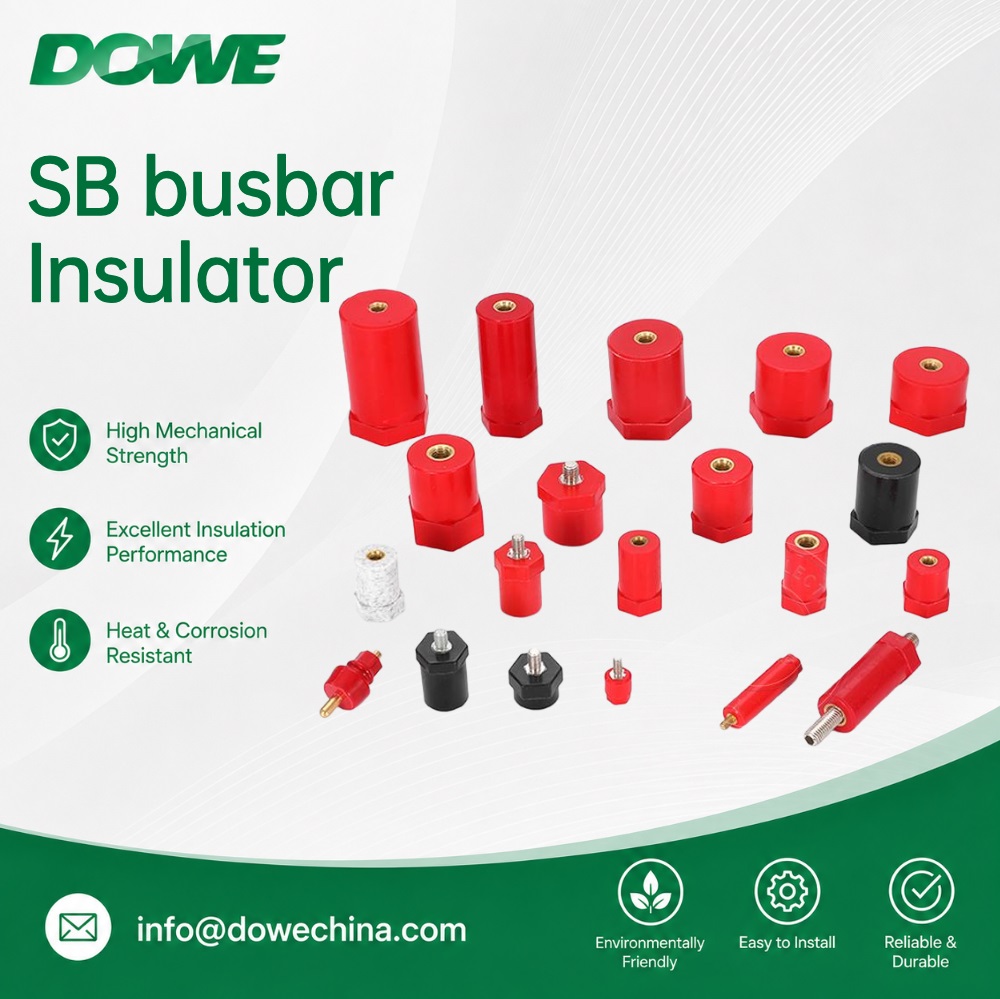

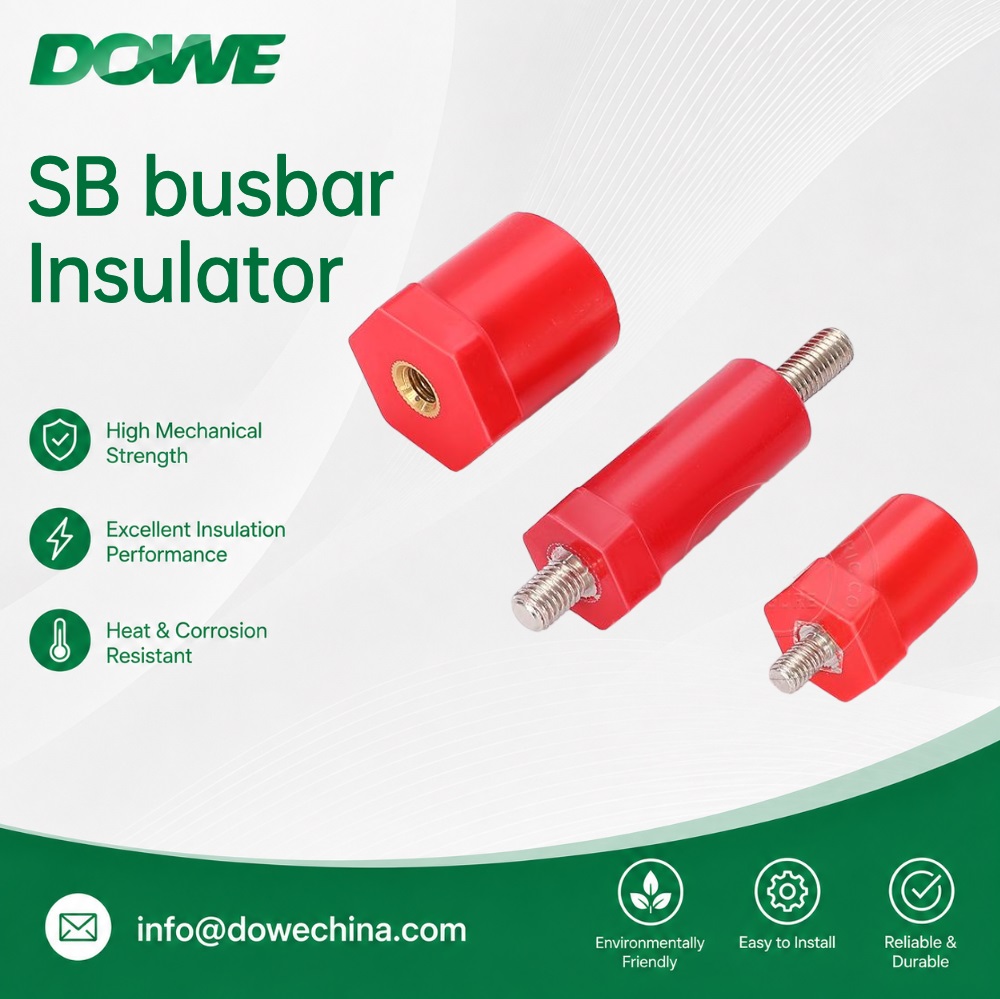

DOWE’s SB / JYZ Series is a hexagonal base standoff insulator family purpose-designed for high-voltage DC (up to 1,500V DC) solar PV, battery energy storage, EV charging, and DC fuse applications. Its key attributes include:
- Hexagonal anti-rotation base integrated with cylindrical upper body
- Height range: 14 mm to 90 mm
- Thread size: M5 through M16
- Primary material: high-grade DMC/BMC/SMC
- Operating temperature endurance from -40°C to +140°C for new energy applications
- Tensile pull-out resistance: greater than 8,000 N for M8/M10 inserts
- Torsional lock: greater than 1.5 × the bolt proof torque
The hexagonal anti-rotation base allows assembly technicians to hold the base with an open-end wrench while applying full tightening torque, preventing rotational shear stress on the mounting plate — a detail that matters on battery racks subjected to continuous thermal loading and heavy vibration during transport and seismic events.
SB / JYZ Dimensional Models: Matching Isolation to Load
The family scales across body diameters to match both enclosure depth and mechanical demand:
- SB14 (JYZ-14) — 14 mm body diameter, available heights 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 60 mm; M5, M6; DMC/BMC (UL 94-V0)
- SB16 (JYZ-16) — 16 mm body diameter, heights 16–60 mm; M5, M6; DMC/BMC (UL 94-V0)
- SB20 (JYZ-20) — 20 mm body diameter, heights 16–90 mm; M5, M6, M8; high-strength BMC
- SB30 (JYZ-30) — 30 mm body diameter, heights 30–65 mm; M6, M8; reinforced BMC/SMC with tightening torque up to 26 N·m proof load
- SB35 (JYZ-35) — 35 mm body diameter, height 45 mm; M10; reinforced BMC/SMC supporting torque up to 28–35 N·m working and 52 N·m proof
- SB40 (JYZ-40) — 40 mm body diameter, heights 30–70 mm; M8, M10; high-strength SMC using longer glass fibers (25mm–50mm), tightening torque from 14–35 N·m
- SB60 (JYZ-60) — 60 mm body diameter, heights 40–80 mm; M12, M16; heavy-duty SMC supporting torque up to 75–95 N·m working for M16
Dielectric and Surge Performance Under Fault Conditions
Thermal and mechanical ratings are only half of the fire-safety picture. The electrical margins specified across the insulation system include:
- Low-voltage dielectric withstand: 3,500V AC (50Hz, 1 minute) without puncture or flashover
- Surge impulse margin: withstands 1.2/50 μs impulse overvoltage up to 8kV (Overvoltage Category IV per IEC 60664-1)
- Epoxy volume resistivity: greater than 10^14 Ω·cm
- Partial discharge: less than 5 pC at 1.1 Um for cast epoxy medium-voltage insulators
- Dielectric loss angle tan δ: no greater than 0.005 at 20°C
From Rating to Reality: Manufacturing and Test Discipline
A certified flame rating depends on process control. DOWE operates automated BMC/SMC hydraulic compression molding workshops, vacuum casting facilities for epoxy resin using automated pressure gelation (APG), automated CNC thread tapping units, and a certified high-voltage dielectric test laboratory. Custom insert engineering covers cold-pressed brass (H62) and zinc-plated high-tensile steel threaded inserts from M4 through M16, while custom formulation development includes flame-retardant halogen-free BMC, UV-stabilized outdoor formulations, and high-tracking resin matrices.
Compliance documentation spans IEC 61439-1/2, IEC 60664-1, IEC 60273, IEC 60071, and IEC 60815, together with UL 94-V0 flammability certification, RoHS 2011/65/EU & 2015/863 compliance, REACH (EC 1907/2006) compliance, CE clearance, SGS third-party type test clearance, and UL 746B Relative Thermal Index certification.
What Verified Insulation Changes for Panel Builders and Integrators
Panel builders can reference DOWE third-party SGS type test reports to complete Design Verification documentation without independent destructive testing. That is a practical reduction in qualification effort, because it lets engineering teams validate insulation performance against documented third-party results rather than commissioning their own test program.
Service scale supports this at volume: production capacity greater than 500,000 low-voltage standoffs per month, with millions of SB/JYZ insulators exported annually to solar inverter OEMs, battery pack integrators, and switchgear builders across Germany, the United States, Spain, Italy, the Netherlands, and Canada. DOWE serves more than 60 countries across Europe, the Americas, the Middle East, Southeast Asia, and Australia.
Platform compatibility extends to ABB MNS 2.0 / 3.0 drawer-type low-voltage cabinets, Schneider Blokset and Okken switchgear, Siemens Sivacon switchgear, GE switchgear, Eaton switchgear, and GCK, GCS, and MNS drawer switchgear systems — alongside energy storage cabinets, photovoltaic projects, and lithium battery applications, with OEM replacement positioning across UK, Italy, Germany, Greece, USA, Canada, Romania, Macedonia, Poland, Philippines, Egypt, Kenya, and Brazil.
Conclusion: Specifying Insulation as a Fire-Safety Component
In a utility-scale BESS enclosure, the difference between contained fault energy and an uncontrolled fire often comes down to whether the composite separating live busbars from grounded structure behaves as specified. Material Group I tracking resistance, UL 94-V0 self-extinguishing behavior within 8 seconds with zero flaming drips, structural rigidity under 1.8 MPa flexural load up to +180°C, and dielectric margins to 8kV impulse are the measurable parameters that determine whether a specified insulator supports enclosure fire safety over the full life of the asset. Evaluating those parameters, and the third-party documentation behind them, is how panel builders and integrators replace assumption with evidence.
